| Specification | PATCO-3000 |

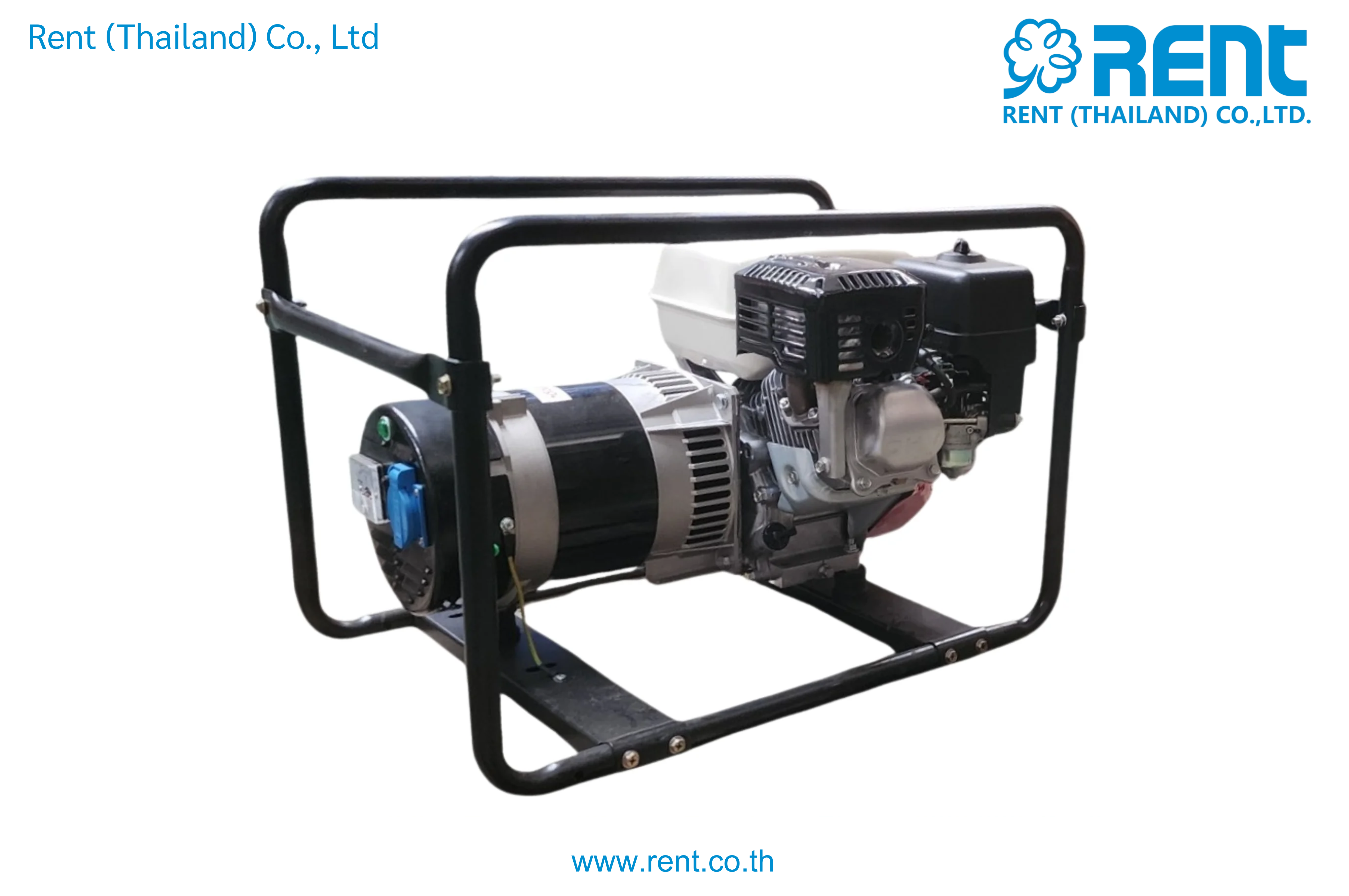

| Generator Model | PATCO-3000 |
| Generator Type | Self-Exciting, 2-Pole, Single Phase |
| Maximum Output 50 Hz (kVA) | 3.3 |
| Maximum Output 60 Hz (kVA) | 3.9 |
| Rated Output 50 Hz (kVA) | 3 |
| Rated Output 60 Hz (kVA) | 3.6 |
| AC Voltage 50 Hz (V) | 230V |
| AC Voltage 60 Hz (V) | 240V |
| Current (A) | 13 |
| Speed (r/min) | 3000 |
| Rated Power Factor | 1 cosΨ |
| Engine Brand | HONDA |
| Engine Model | GX160 T2 |
| Displacement (cc) | 163 |
| Bore × Stroke (mm) | 68×45 |
| Engine Output (kW/r/min) | 4.9/3600 |
| Engine Type | Gasoline Engine, Single Cylinder, 4-Stroke, Air-Cooled |
| Engine Oil Capacity (L) | 0.58 |
| Fuel Tank Capacity (L) | 3.1 |
| Starting System | Recoil Start |
| Dimensions (W×L×H) mm | 40×65×42 |
| Net Weight (kg) | 36 |
| Frame Type | Steel Frame |
